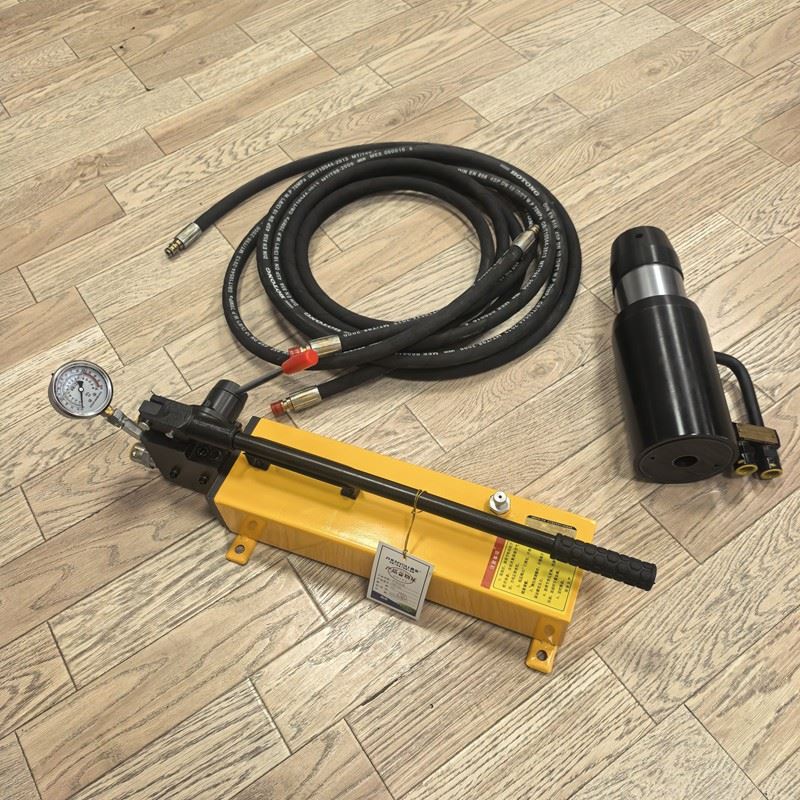

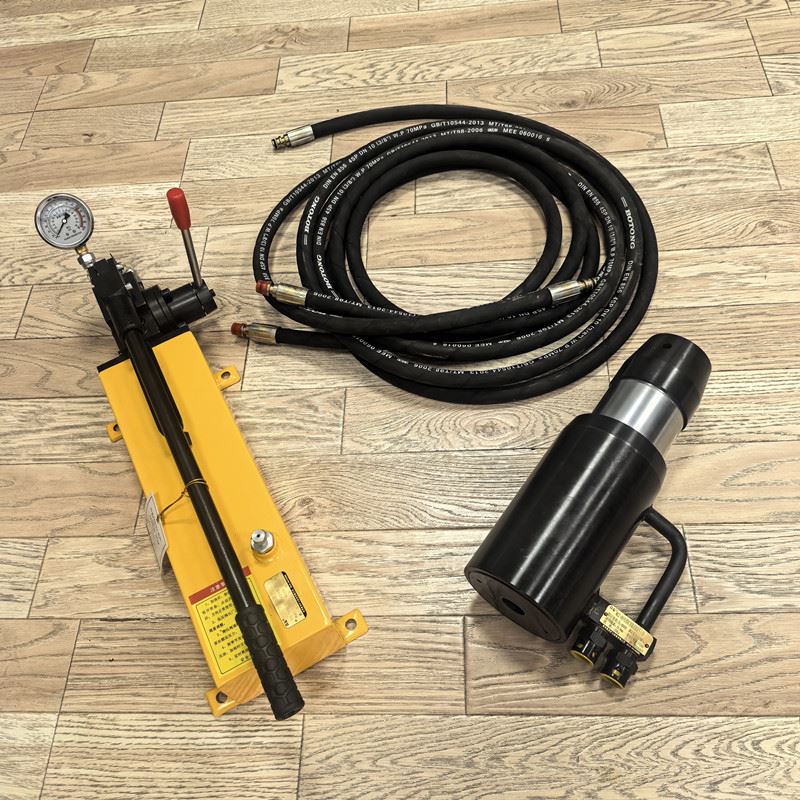

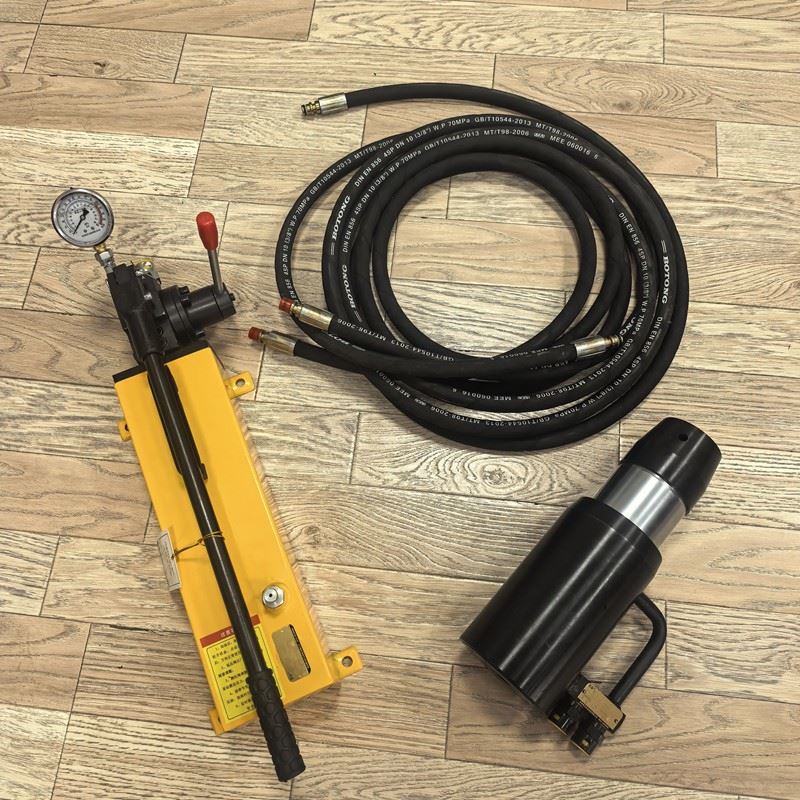

Manual Anchor Cable Tensioner
The Manual Anchor Cable Tensioner operates entirely on manual hydraulic pump power. It does not need electricity or compressed air.
Complete Independence From Power Or Air Supply
The Manual Anchor Cable Tensioner operates entirely on manual hydraulic pump power. It does not need electricity or compressed air. This product works in any location, regardless of power availability. It is perfect for goaf edges, old roadways, and remote sites where no power source exists. The simple design means fewer parts to break and easy maintenance. Workers generate high-pressure oil by operating the pump handle. This drives the jack to grip and tension the cable.
Affordable, Lightweight, and Built to Last
Our manual jack uses aerospace-grade materials and processes. The MS22-400/63 jack weighs only 20 kg. This Manual Anchor Cable Tensioner is 20-30% lighter than competitors' products. One person can carry it to the site and position it easily. The tool anchor in our manual unit lasts much longer than ordinary ones. We solved the wear problem through better materials and heat treatment. This reduces your costs on spare parts and saves labor time. The price is also significantly lower than pneumatic or electric versions. For customers with limited budgets or low usage frequency, this product is the most cost-effective choice.
Complete Technical Specifications
|
Model |
Rated Tension Force (KN) |
Cable Diameter (mm) |
Stroke (mm) |
Center Hole (mm) |
Jack Weight (Kg) |
Rated Oil Pressure (MPa) |
Handle Force (N) |
High Pressure Flow (ml/stroke) |
Low Pressure Flow (ml/stroke) |
Tank Capacity (L) |
Pump Weight (Kg) |
|
MS15-200/63 |
200 |
15.24 |
125 |
18 |
15 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS18-300/63 |
300 |
17.8 |
100 |
20.5 |
18 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS19-300/63 |
300 |
18.9 |
100 |
21.5 |
18 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS22-400/63 |
400 |
21.8 |
100 |
25 |
20 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS22-500/63 |
500 |
21.8 |
100 |
25 |
24 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS29-600/63 |
600 |
28.6 |
100 |
32 |
26 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS32-600/63 |
600 |
32 |
100 |
35 |
26 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS35-700/63 |
700 |
35 |
100 |
39 |
29 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
Customization and Shipping Details
We offer many customization options. You can customize tension force, cable specifications, stroke, and hose length. We also customize the pump tank capacity and handle length. Each Manual Anchor Cable Tensioner comes with detailed operation and maintenance manuals. We ship in solid wood cases with quick-release stainless steel buckles. Internal parts are partitioned and wrapped in bubble film. The cases are moisture-proof, rain-proof, and shock-proof. Cases display product info and warning signs. We support FOB, EXW, CIF and provide export clearance assistance.
