Anchor Cable Tensioning Equipment
Anchor Cable Tensioning Equipment is our complete solution for underground anchor support systems.
Complete System Solution For Mine Support

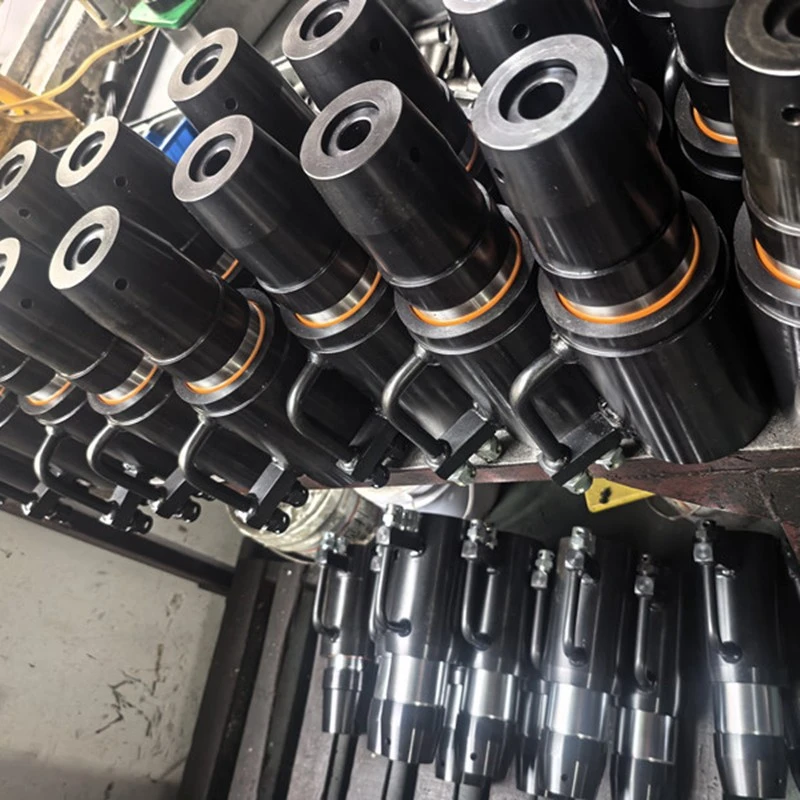

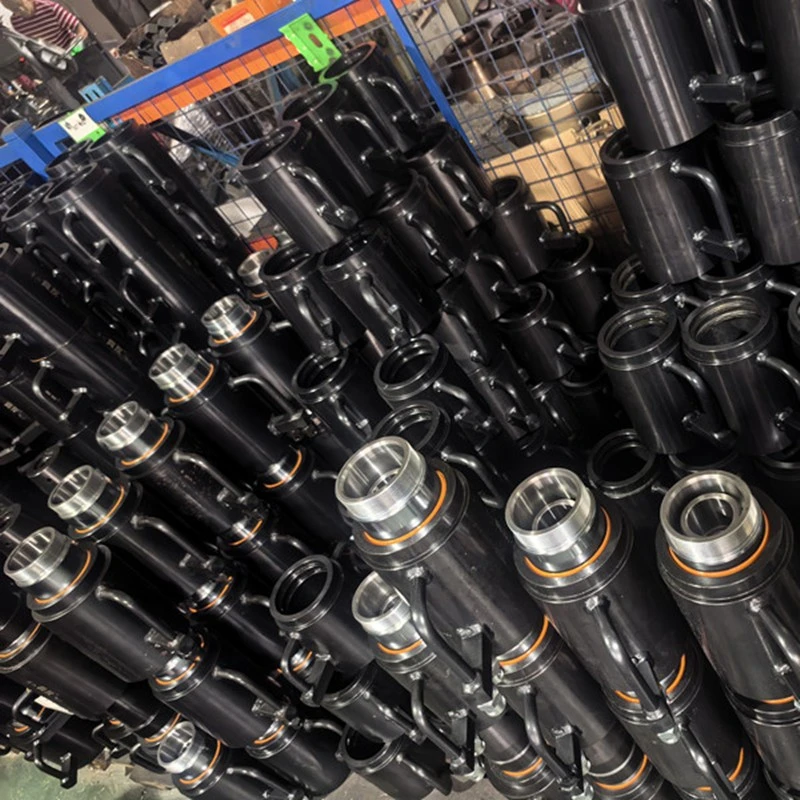

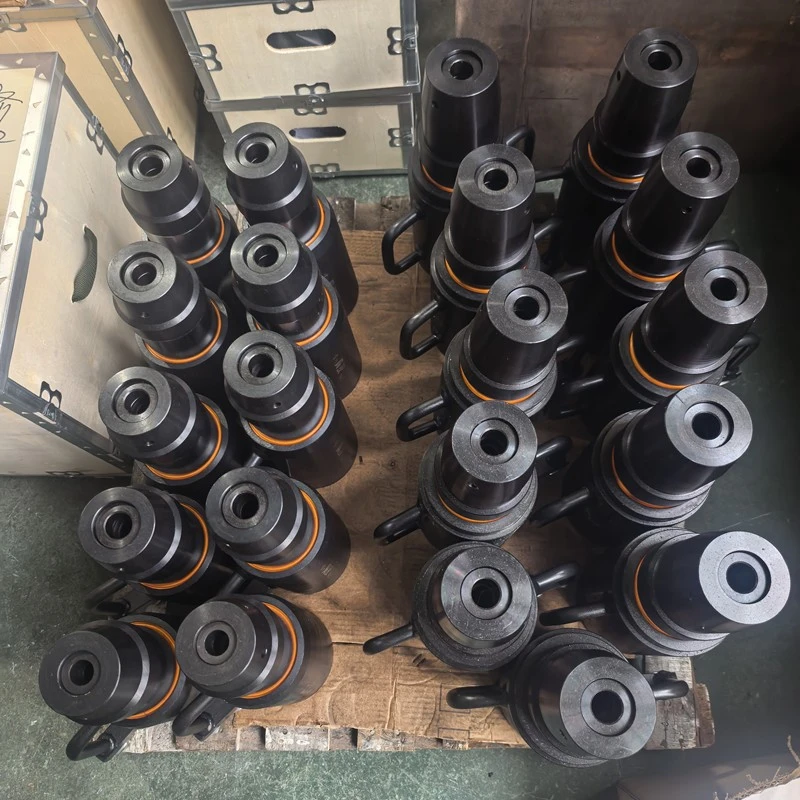

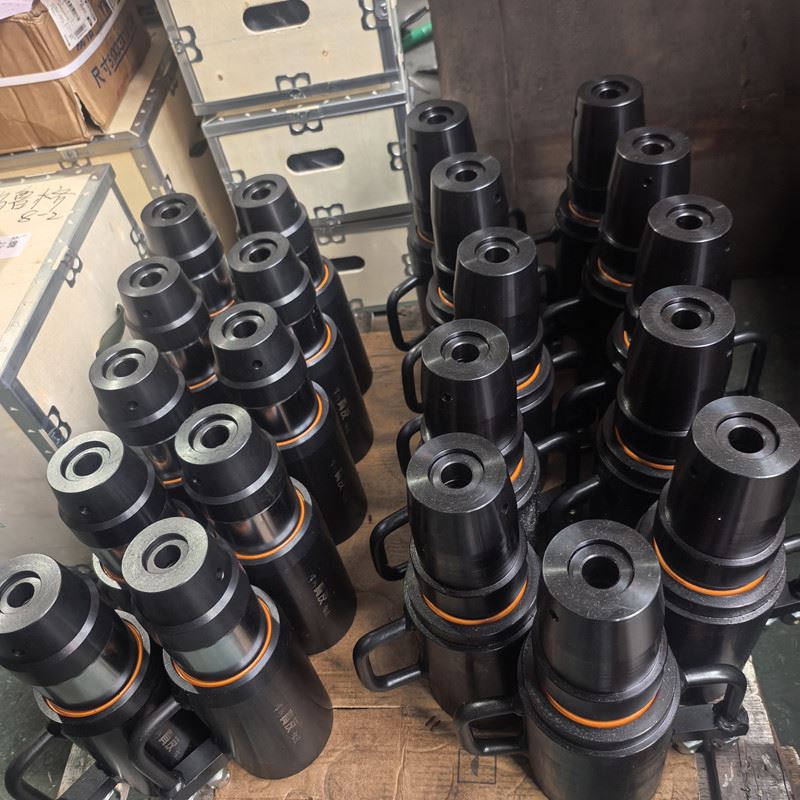

Anchor Cable Tensioning Equipment is our complete solution for underground anchor support systems. This equipment typically includes a tension jack, a hydraulic pump station (pneumatic, electric, or manual), high-pressure hose assemblies, and tool anchors. These components form a fully functional anchor tensioning system. This product can be flexibly configured for different site conditions. It works for high-gas coal mines with pneumatic setups. It works for metal mines and tunnel projects with electric or manual setups. One system, multiple configurations. Based on nearly 20 years of mining support experience, we have precisely matched the jack and pump for optimal flow and pressure balance.
Three Power Options for Every Condition
Every Anchor Cable Tensioning Equipment system undergoes complete assembly and performance testing before shipment. This ensures all parts work together without failure. We offer three power configurations. The pneumatic MQ series uses compressed air. The manual MS series operates with a hand pump. The electric MD series runs on an explosion-proof motor. All three share the same high-quality jack with aerospace-grade materials. The jack is 20-30% lighter than competitors. This Anchor Cable Tensioning Equipment has been widely praised by major clients including China Energy Group and Shandong Energy Group. The stable performance and low operating costs make it a reliable partner for both new roadway development and old tunnel reinforcement.
Complete Technical Specifications - Pneumatic (MQ Series)
|
Model |
Rated Tension Force (KN) |
Cable Diameter (mm) |
Stroke (mm) |
Center Hole (mm) |
Jack Weight (Kg) |
Working Air Pressure (MPa) |
Rated Oil Pressure (MPa) |
Rated Flow (L/min) |
Tank Capacity (L) |
Pump Weight (Kg) |
|
MQ15-200/63 |
200 |
15.24 |
125 |
18 |
15 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ18-300/63 |
300 |
17.8 |
100 |
20.5 |
18 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ19-300/63 |
300 |
18.9 |
100 |
21.5 |
18 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ22-400/63 |
400 |
21.8 |
100 |
25 |
20 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ22-500/63 |
500 |
21.8 |
100 |
25 |
24 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ29-600/63 |
600 |
28.6 |
100 |
32 |
26 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ32-600/63 |
600 |
32 |
100 |
35 |
26 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
|
MQ35-700/63 |
700 |
35 |
100 |
38 |
29 |
0.4～0.7 |
63 |
1.5 |
4.0 |
16.0 |
Complete Technical Specifications - Manual (MS Series)
|
Model |
Rated Tension Force (KN) |
Cable Diameter (mm) |
Stroke (mm) |
Center Hole (mm) |
Jack Weight (Kg) |
Rated Oil Pressure (MPa) |
Handle Force (N) |
High Pressure Flow (ml/stroke) |
Low Pressure Flow (ml/stroke) |
Tank Capacity (L) |
Pump Weight (Kg) |
|
MS15-200/63 |
200 |
15.24 |
125 |
18 |
15 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS18-300/63 |
300 |
17.8 |
100 |
20.5 |
18 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS19-300/63 |
300 |
18.9 |
100 |
21.5 |
18 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS22-400/63 |
400 |
21.8 |
100 |
25 |
20 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS22-500/63 |
500 |
21.8 |
100 |
25 |
24 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS29-600/63 |
600 |
28.6 |
100 |
32 |
26 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS32-600/63 |
600 |
32 |
100 |
35 |
26 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
|
MS35-700/63 |
700 |
35 |
100 |
39 |
29 |
63 |
350 |
2.3 |
14.5 |
2.0 |
10.0 |
Complete Technical Specifications - Electric (MD Series)
|
Model |
Rated Tension Force (KN) |
Cable Diameter (mm) |
Stroke (mm) |
Center Hole (mm) |
Jack Weight (Kg) |
Voltage (V) |
Explosion-Proof Rating |
Rated Oil Pressure (MPa) |
Rated Flow (L/min) |
Tank Capacity (L) |
Noise (dB) |
Pump Weight (Kg) |
|
MD15-200/63 |
200 |
15.24 |
125 |
18 |
15 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD18-300/63 |
300 |
17.8 |
100 |
20.5 |
18 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD19-300/63 |
300 |
18.9 |
100 |
21.5 |
18 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD22-400/63 |
400 |
21.8 |
100 |
25 |
20 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD22-500/63 |
500 |
21.8 |
100 |
25 |
24 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD29-600/63 |
600 |
28.6 |
100 |
32 |
26 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD32-600/63 |
600 |
32 |
100 |
35 |
26 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
|
MD35-700/63 |
700 |
35 |
100 |
39 |
29 |
660/1140 |
EXdl Mb |
63 |
3.0 |
15 |
85 |
58 |
Full Customization and Global Shipping
We offer complete customization for this Anchor Cable Tensioning Equipment. You can choose the power source, jack configuration, hose length, and tool anchor type. We also support OEM branding with your logo on nameplates and packaging. All systems ship in solid wood cases with stainless steel buckles. Each component is wrapped in bubble film and fixed in place. Cases are moisture-proof, rain-proof, and shock-proof. We support FOB, EXW, CIF and provide export documentation assistance.
