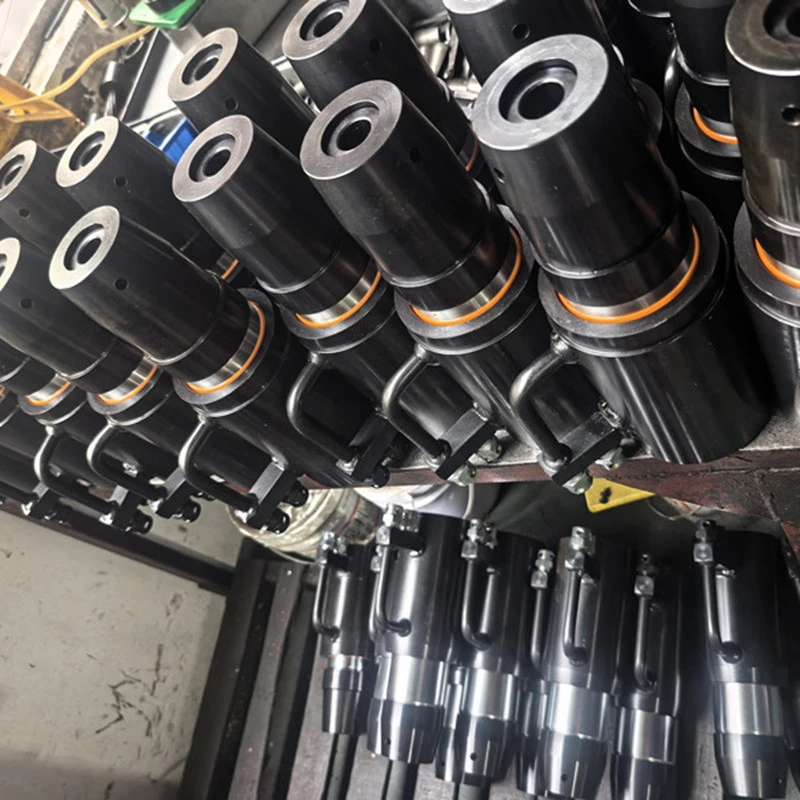

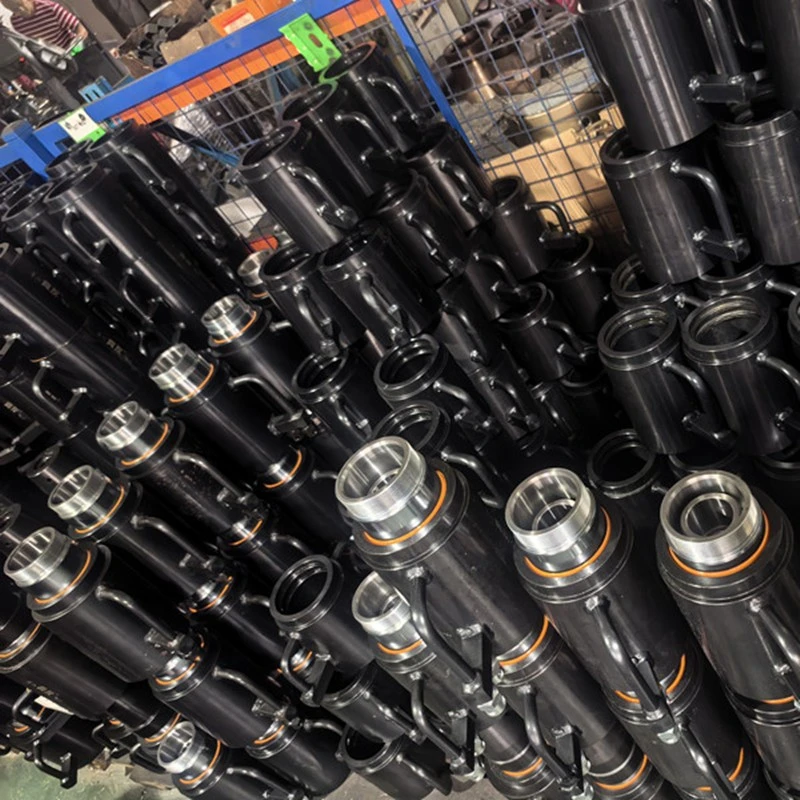

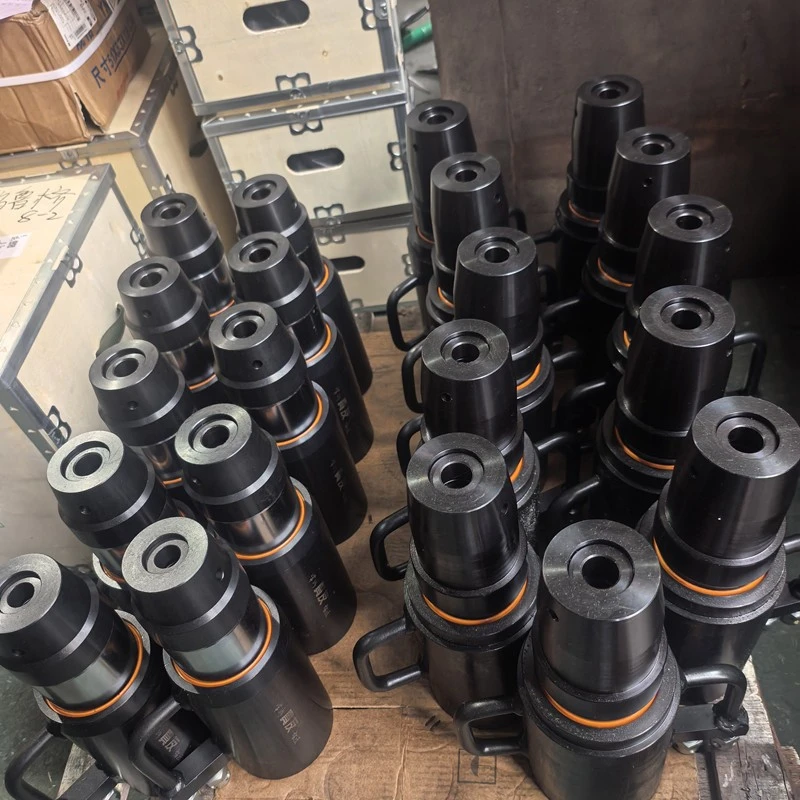

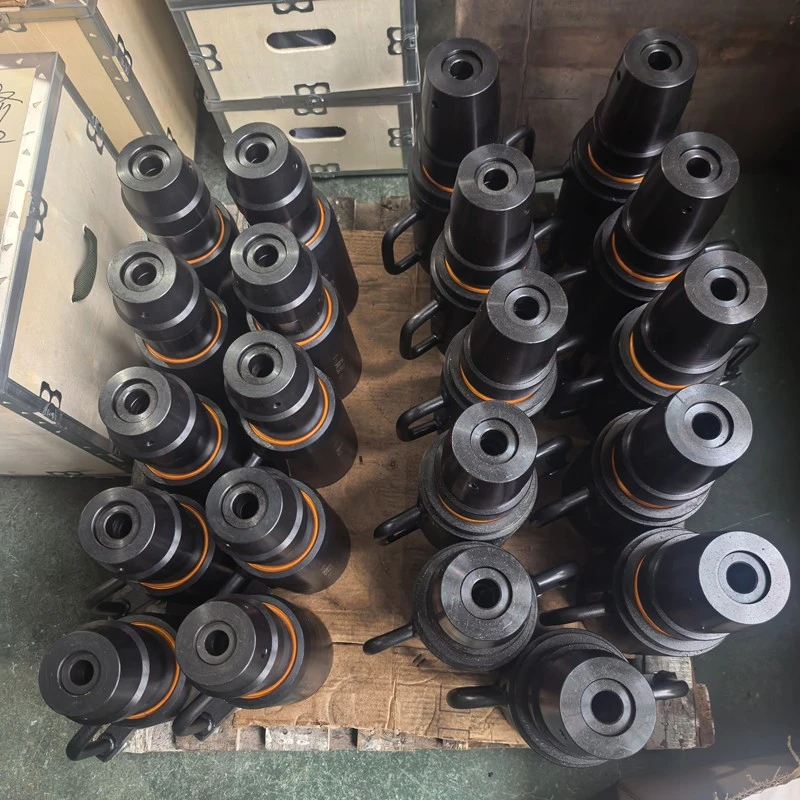

Hydraulic Anchor Cable Tensioner
The Hydraulic Anchor Cable Tensioner is built for high-load, high-frequency tensioning jobs. It uses hydraulic oil from underground bolting rigs or mining equipment as its power source.
Powerful Tensioning Without Air Or Electricity
The Hydraulic Anchor Cable Tensioner is built for high-load, high-frequency tensioning jobs. It uses hydraulic oil from underground bolting rigs or mining equipment as its power source. This product solves a common problem: sites with low air pressure or where electric motors are banned. It delivers 63 MPa output pressure using existing hydraulic systems (7-32 MPa inlet). The jack grips, tensions, locks, and releases smoothly with minimal impact. This reduces damage to cables and anchors.
Built for Harsh Underground Conditions
Our hydraulic pump uses a planetary gear motor from trusted suppliers. The system features dual independent circuits. The drive system and oil circuit operate separately, so they don't interfere with each other. This design significantly reduces hydraulic failures and extends service life. The Hydraulic Anchor Cable Tensioner also features a lightweight jack made with aerospace-grade materials. The MY22-400/63 jack weighs only 21 kg, which is 20-30% lighter than competitors. Workers can position it easily without straining.
Complete Technical Specifications
|
Model |
Rated Tension Force (KN) |
Cable Diameter (mm) |
Stroke (mm) |
Center Hole (mm) |
Jack Weight (Kg) |
Rated Oil Pressure (MPa) |
Inlet Pressure (MPa) |
Inlet Flow (L/min) |
Rated Flow (L/min) |
Tank Capacity (L) |
Pump Weight (Kg) |
|
MY15-200/63 |
200 |
15.24 |
125 |
18 |
15 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY18-300/63 |
300 |
17.8 |
100 |
20.5 |
18 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY19-300/63 |
300 |
18.9 |
100 |
21.5 |
18 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY22-400/63 |
400 |
21.8 |
100 |
25 |
20 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY22-500/63 |
500 |
21.8 |
100 |
25 |
24 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY29-600/63 |
600 |
28.6 |
100 |
32 |
26 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY32-600/63 |
600 |
32 |
100 |
35 |
26 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
|
MY35-700/63 |
700 |
35 |
100 |
38 |
29 |
63 |
7-32 |
8~32 |
2.0 |
4.0 |
20.0 |
Customization and Logistics Support
We offer flexible customization for this Hydraulic Anchor Cable Tensioner. Options include tension force, cable specifications, stroke, tank capacity, and jack dimensions. For high-altitude or extreme-temperature sites, we adjust seals and cooling systems. Sample development takes 1 to 3 months. We ship in solid wood cases with quick-release buckles. All parts are wrapped and partitioned to resist moisture, rain, and shock. We support FOB, EXW, CIF and assist with export clearance.
